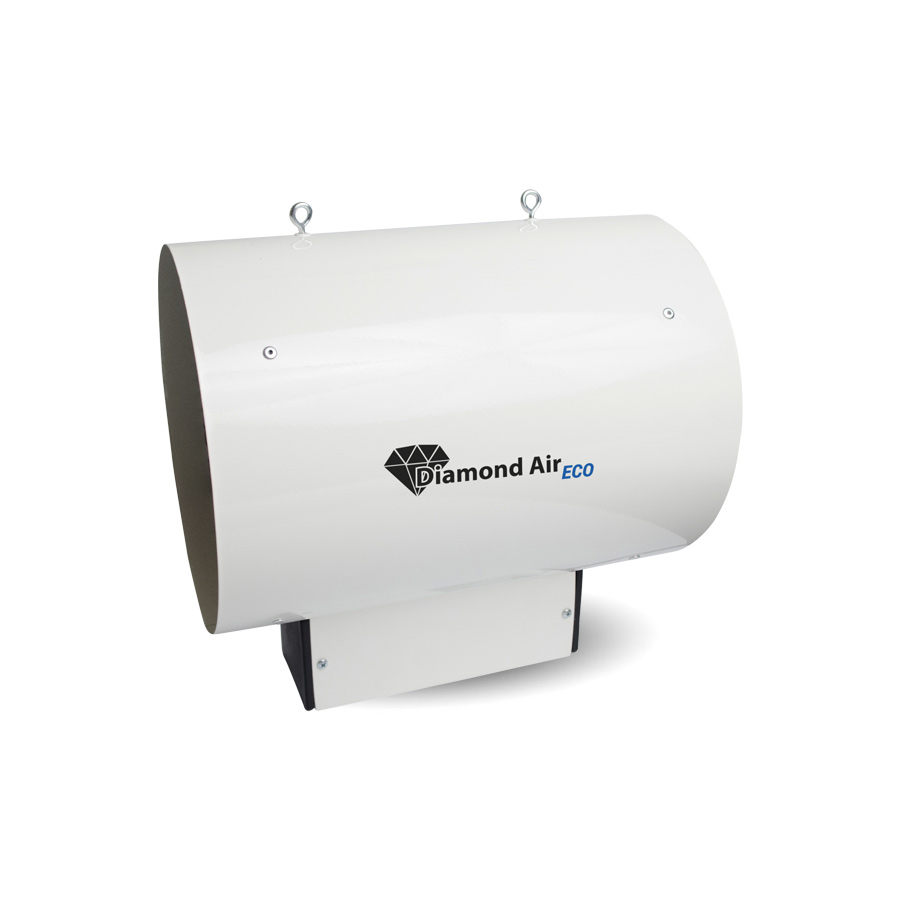

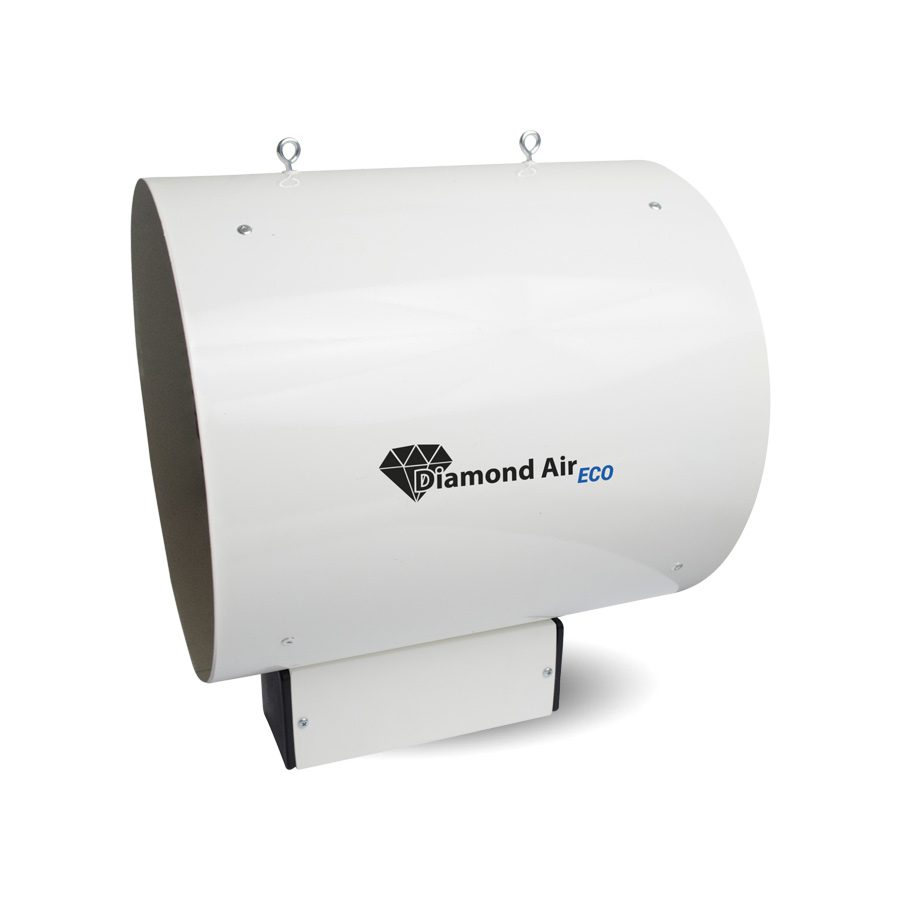

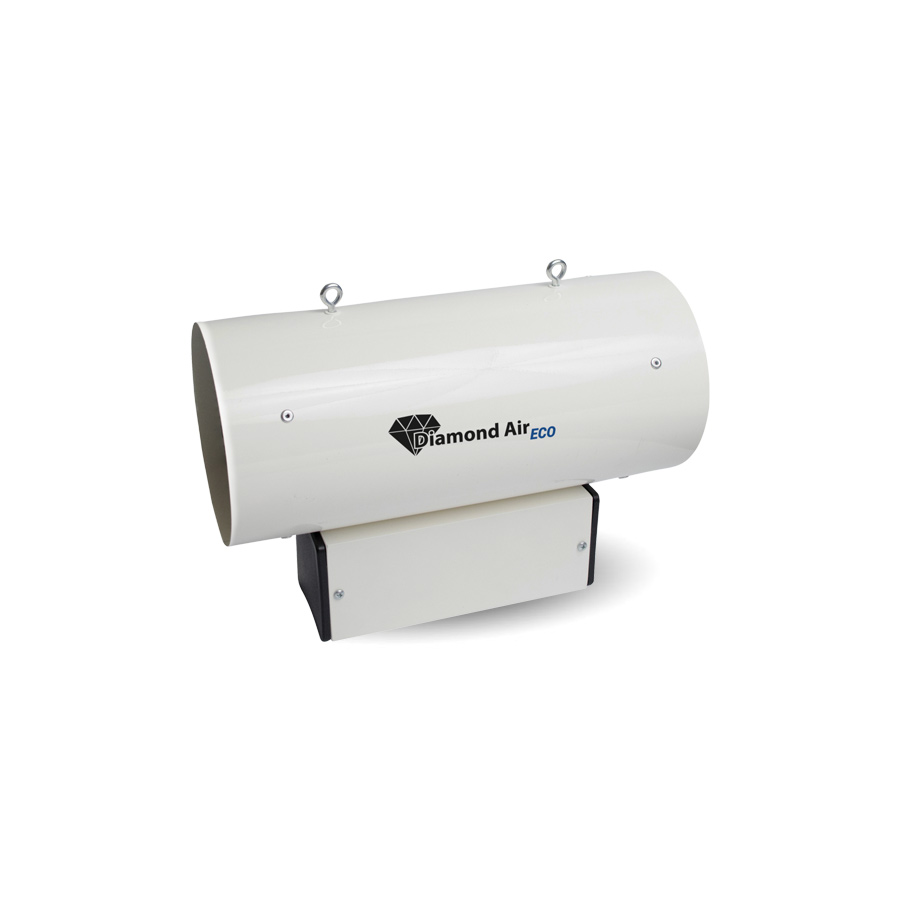

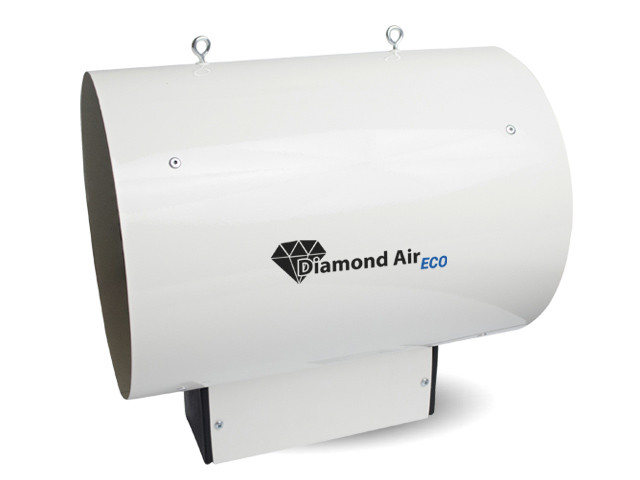

Diamond Air In-line ECO

Disinfect bacteria, viruses, and mold

100% Odor Removal

High quality
safe product

Plug & Play components

GMP ready

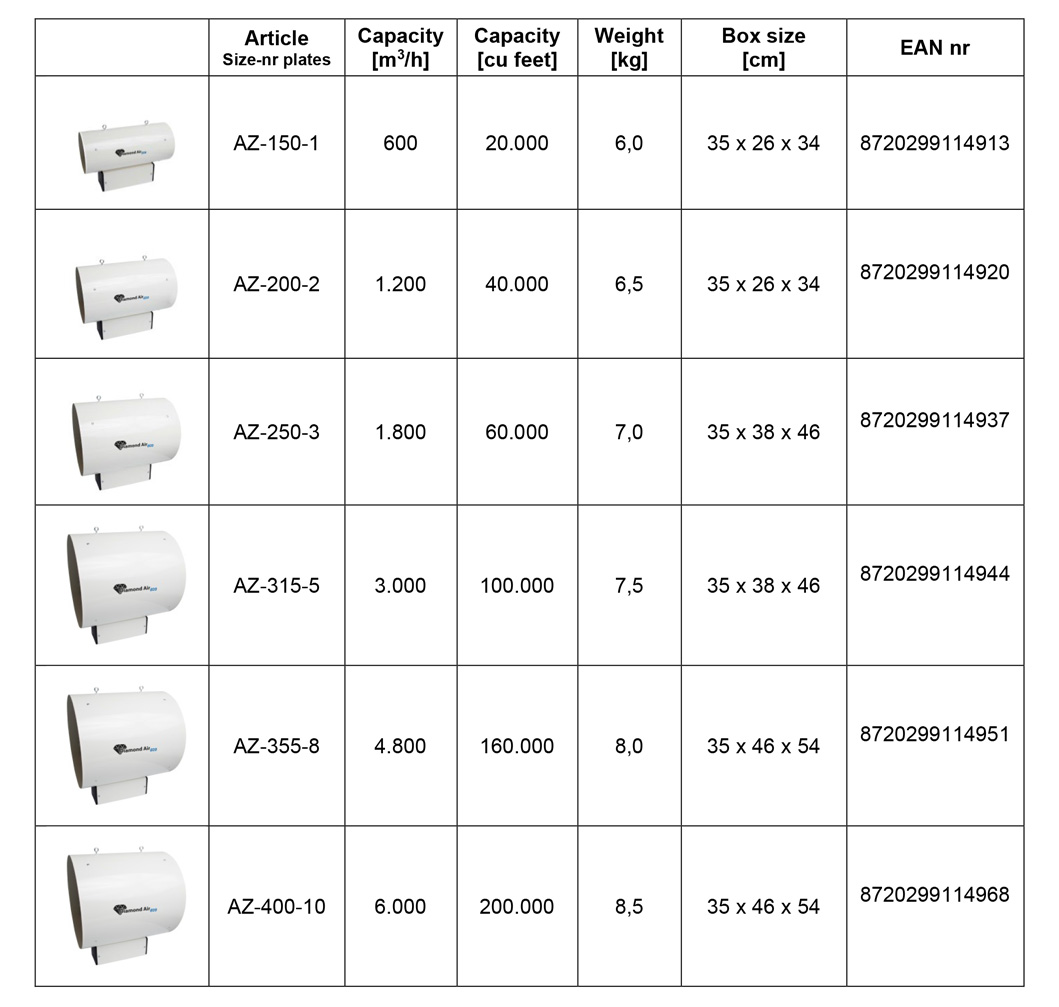

DiamondAir Product Inline ECO Tabel

Specification / technical data

Connection voltage : 230V / 50Hz 115V / 60Hz
Max. power : 100W
Ambient Temperature : -20°C ..... +50°C
Max. Relative Humidity : 80%
Fuse : 0,5A (230V slow)

The revolutionary new air cleaning system!

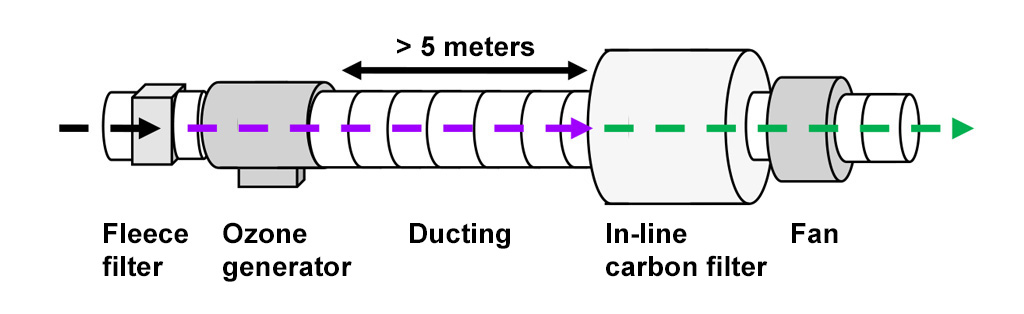

The fleece filter is required as pre-filter for large dust particles. After ozone generation a minimal length of 5 meters ducting is required. This is to let the ozone have sufficient time to react with the polluted air. It is possible that more ozone is produced than necessary to clean the air. The excess ozone will be blocked by the in-line carbon filter. This will also filter all fine particles. The disinfected and clean air is blown to your desired area by the fan.

The Diamond air in-line system can be made for any specific capacity. The various components have been selected to function as an optimal system.

Air flow outputs in (semi) closed areas

The ozone can be blocked by using an in-line carbon filter at the output of the ventilation system.
Ozone will be blocked by the carbon and will break down to oxygen again.

Diamond Air In line system Tekening EN 001

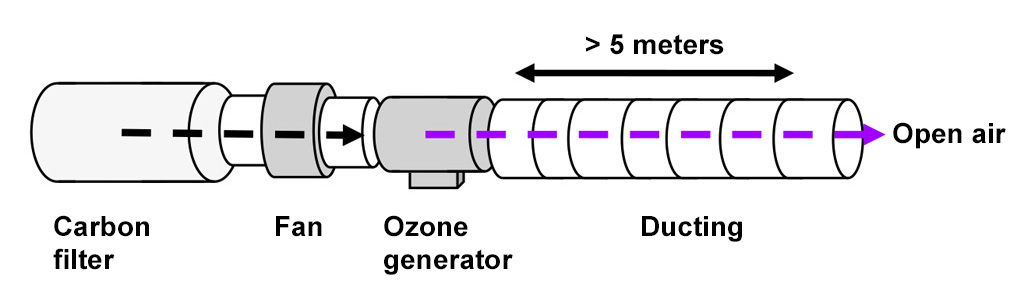

Air flow outputs in open areas

The ozone concentration in open air declines rapidly. Ozone concentration in open air will always remain within acceptable levels. Advice is to place the ozone generator close after the fan, so maximum length of ducting issued for ozone reaction time with the polluted air.

Diamond Air In line system Tekening EN 002
